VAULT GFRP

Gallery Vivarium Arcoplast logo
Certification Description
Leef Logo
Leef : Logistical economic environmental footprint
Result Compliance standards
Compliant BSL-2 ABSL-3 BSL-3 BSL-3Ag BSL-4
Compliant CL 2 CL 3 CL 4
Compliant PC2 PC3 PC4
Compliant USP 797-800
Compliant Canada agriculture
Compliant CDC
Compliant FDA
Compliant NIAD
Compliant NIH
Compliant USDA
CSI Product Guide specification written according to CSI 3part format
NYC Building Toxicity Test MEA 64-96M, City of New York Department of Building
Seismic Category A B C D E F : Please note, always consult local building authorities for specific regulations.
VOC Report V1NNW211GC-Rev.2-(S1) : After 72 hours no VOCs detected
GFRP 13/64 inch : Lining panel



Arcoplast.GFRP 5mm wall ceiling panel system



THICKNESS 13/64 in
WIDTH 4 ft
LENGTH 3 - 12 ft   •••   tolerance +/- 1/8in
WEIGHT 2.0 lbs / Sq. Ft



Joint Profiles
End Cut Square cut - - -
Side Edge Eased side edge - - -
Joint System Batten cover Flush seam
Application :Wall and ceiling cladding system for new builds or for modernizing an existing cleanroom

Dry Build : Direct attachment to framing or substrate, using back plates and A-2020 structural adhesive

Rated : BSL-2, BSL-3, ABSL-3, BSL-3Ag







GFRP 3/8 inch : High containment panel



Arcoplast.GFRP 9.5mm wall ceiling panel system



THICKNESS 3/8 in
WIDTH 4 ft
LENGTH 3 - 12 ft   •••   tolerance +/- 1/8in
WEIGHT 3.6 lbs / Sq. Ft



Joint Profiles
End Cut Square cut Special order : Kerf Groove
Side Edge Eased side edge Kerf Groove
Joint System Flush seam Mechanical spline, A-2020 structural adhesive
Applications : Wall and ceiling cladding system for new builds or for modernizing an existing cleanroom

Dry Build : Direct attachment to framing or various substrates using splines and A-2020 structural adhesive

Rated : BSL-3, BSL-3Ag, ABSL-3, BSL-4







GFRP 1/2 inch : High containment panel



Arcoplast. PC3 Lab using Acryloyl wall ceiling system with truncking and double glazing



THICKNESS 1/2 in
WIDTH 4 ft
LENGTH 3 - 12 ft   •••   tolerance +/- 1/8in
WEIGHT 4.6 lbs / Sq. Ft



Joint Profiles
End Cut Square cut Special order : Kerf Groove
Side Edge Eased side edge Kerf Groove
Joint System Flush seam Mechanical spline, A-2020 structural adhesive
Applications : Wall and ceiling primary barriers for cleanrooms and high containment facilities

Dry Build : Direct attachment to framing or various substrates using splines and A-2020 structural adhesive

Rated : BSL-3, BSL-3Ag, ABSL-3, BSL-4







GFRP 3/4 inch : Ultra high impact panel



Arcoplast. PC3 Lab using Acryloyl wall ceiling system with truncking and double glazing



THICKNESS 3/4 in
WIDTH 4 ft
LENGTH 3 - 12 ft   •••   tolerance +/- 1/8in
WEIGHT 6.7 lbs / Sq. Ft



GFRP Ultra 3/4 inch panel : Joint Profiles
End Cut Square cut Special order : Kerf Groove
Side Edge Eased side edge Kerf Groove
Joint System Flush seam Mechanical spline, A-2020 structural adhesive
Application : Cleanrooms that require high impact primary barriers for large animal

Dry Build : Direct attachment to structural framing or solid substrates, using splines and A-2020 structural adhesive

Rated : BSL-3, BSL-3Ag, ABSL-3, BSL-4







GFRP 3/4 inch : Security embed steel mesh panel



Arcoplast. PC3 Lab using Acryloyl wall ceiling system with truncking and double glazing



THICKNESS 3/4 in
WIDTH 4 ft
LENGTH 3 - 12 ft   •••   tolerance +/- 1/8in
WEIGHT 7.8 lbs / Sq. Ft



Joint Profiles
End Cut Square cut Special order : Kerf Groove - - -
Side Edge Eased side edge Kerf Groove - - -
Joint System Batten cover Flush seam Mechanical spline, A-2020 structural adhesive
Applications : Primary barriers for maximin security cleanrooms and high containment facilities

Dry Build : Direct attachment to structural framing or solid substrates, using splines and A-2020 structural adhesive

Rated : BSL-3, BSL-3Ag, ABSL-3, BSL-4







GFRP 1/2 inch : Copper panel



Arcoplast. PC3 Lab using Acryloyl wall ceiling system with truncking and double glazing



THICKNESS 1/2 in
WIDTH 4 ft
LENGTH 3 - 12 ft   •••   tolerance +/- 1/8in
WEIGHT 4.8 lbs / Sq. Ft



Joint Profiles
End Cut Square cut Special order : Kerf Groove - - -
Side Edge Eased side edge Kerf Groove - - -
Joint System Batten cover Flush seam Mechanical spline, A-2020 structural adhesive
Applications : Walls and ceiling primary barrier, that requires RF shielding

Dry Build : Direct attachment to framing or various substrates using splines and A-2020 structural adhesive

Rated : BSL-3, BSL-3Ag, ABSL-3, BSL-4







GFRP 1/2 inch : Lead panel



Arcoplast. PC3 Lab using Acryloyl wall ceiling system with truncking and double glazing



THICKNESS 1/2 in
WIDTH 4 ft
LENGTH 3 - 12 ft   •••   tolerance +/- 1/8in
WEIGHT 7.1 lbs / Sq. Ft



Joint Profiles
End Cut Square Cut Special order : Kerf Groove - - -
Side Edge Eased side edge Kerf Groove - - -
Joint System Batten cover Flush seam Mechanical spline, A-2020 structural adhesive
Application : Radiology suits or Radiopharmaceutical cleanrooms

Dry Build : Direct attachment to framing or various substrates using splines and A-2020 structural adhesive

Rated : BSL-3, BSL-3Ag, ABSL-3, BSL-4

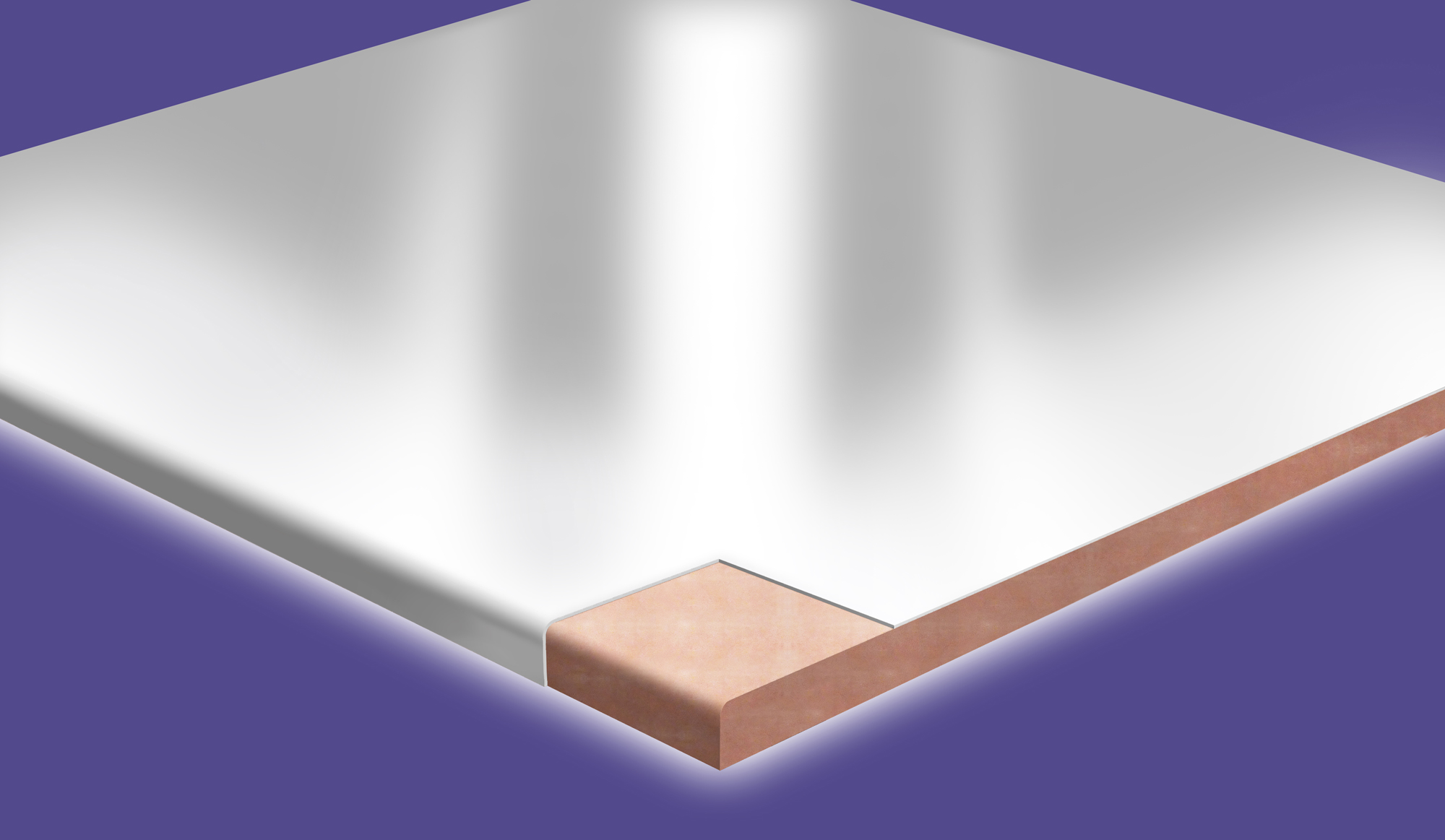

GFRP 5 mm : Lining panel



Arcoplast.GFRP 5mm wall ceiling panel system



THICKNESS 5 mm
WIDTH 1200 mm
LENGTH 900 - 3650 mm   •••   tolerance +/- 3 mm
WEIGHT 9.76 Kg/Sq.m



Joint Profiles
End Cut Square cut - - -
Side Edge Eased side edge - - -
Joint System Batten cover Flush seam
Application :Wall and ceiling cladding system for new builds or for modernizing an existing cleanroom

Dry Build : Direct attachment to framing or substrate, using back plates and A-2020 structural adhesive

Rated : BSL-2, BSL-3, ABSL-3, BSL-3Ag

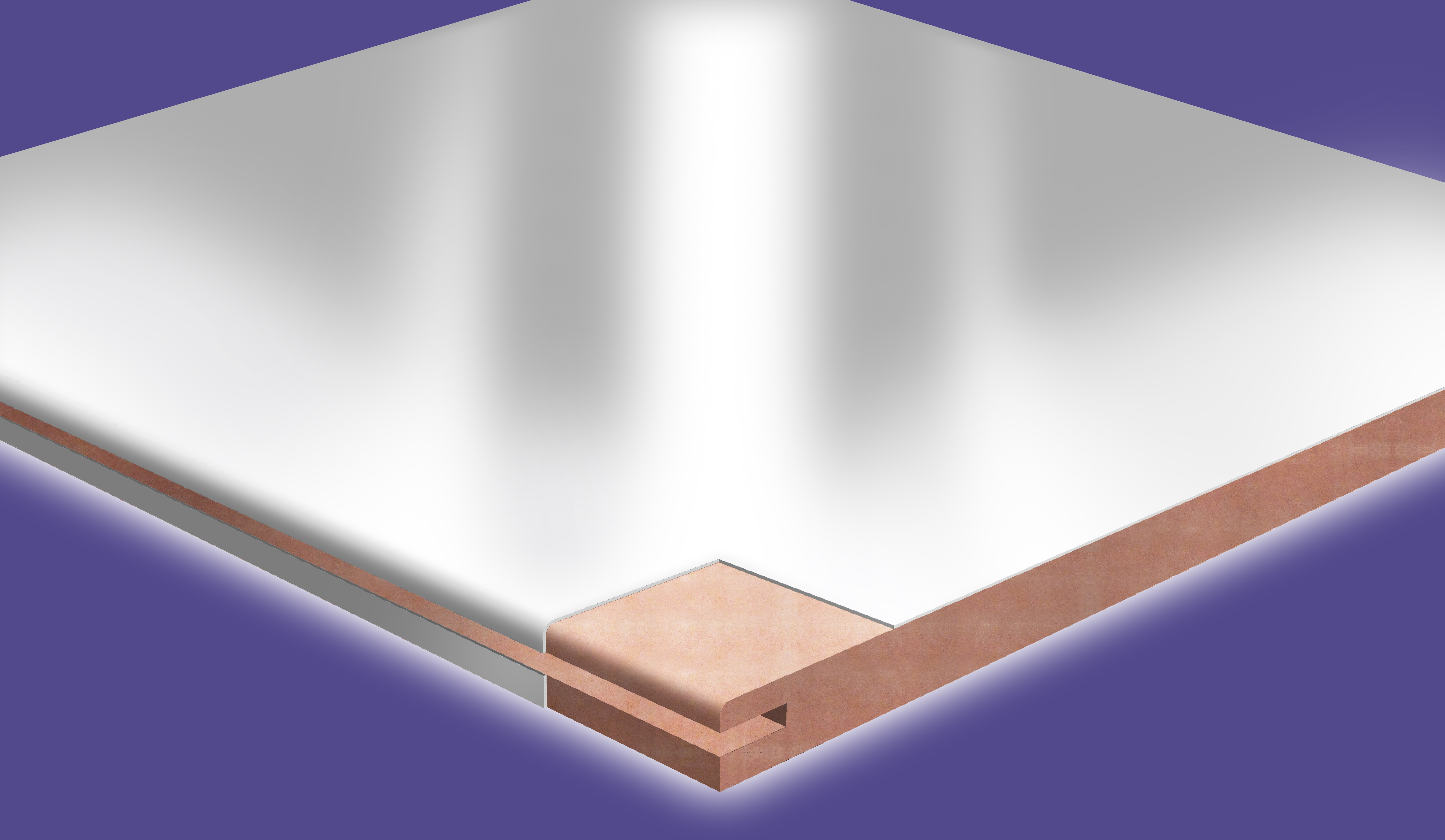

GFRP 9.5 mm : High containment panel



Arcoplast.GFRP 9.5mm wall ceiling panel system



THICKNESS 9.5 mm
WIDTH 1200 mm
LENGTH 900 - 3650 mm   •••   tolerance +/- 3 mm
WEIGHT 17.5 Kg/Sq.m



Joint Profiles
End Cut Square cut Special order : Kerf Groove
Side Edge Eased side edge Kerf Groove
Joint System Flush seam Mechanical spline, A-2020 structural adhesive
Applications : Cleanrooms, controlled environments, high containment facilities

Dry Build : Direct attachment to framing or various substrates using splines and A-2020 structural adhesive

Rated : BSL-3, BSL-3Ag, ABSL-3, BSL-4







GFRP 12.5 mm : High containment panel



Arcoplast GFRP 12.5 mm : High containment panel



THICKNESS 12.5 mm
WIDTH 1200 mm
LENGTH 900 - 3650 mm   •••   tolerance +/- 3 mm
WEIGHT 22.5 Kg/Sq.m



Joint Profiles
End Cut Square cut Special order : Kerf Groove
Side Edge Eased side edge Kerf Groove
Joint System Flush seam Mechanical spline, A-2020 structural adhesive
Applications : Cleanrooms, controlled environments, high containment facilities

Dry Build : Direct attachment to framing or various substrates using splines and A-2020 structural adhesive

Rated : BSL-3, BSL-3Ag, ABSL-3, BSL-4

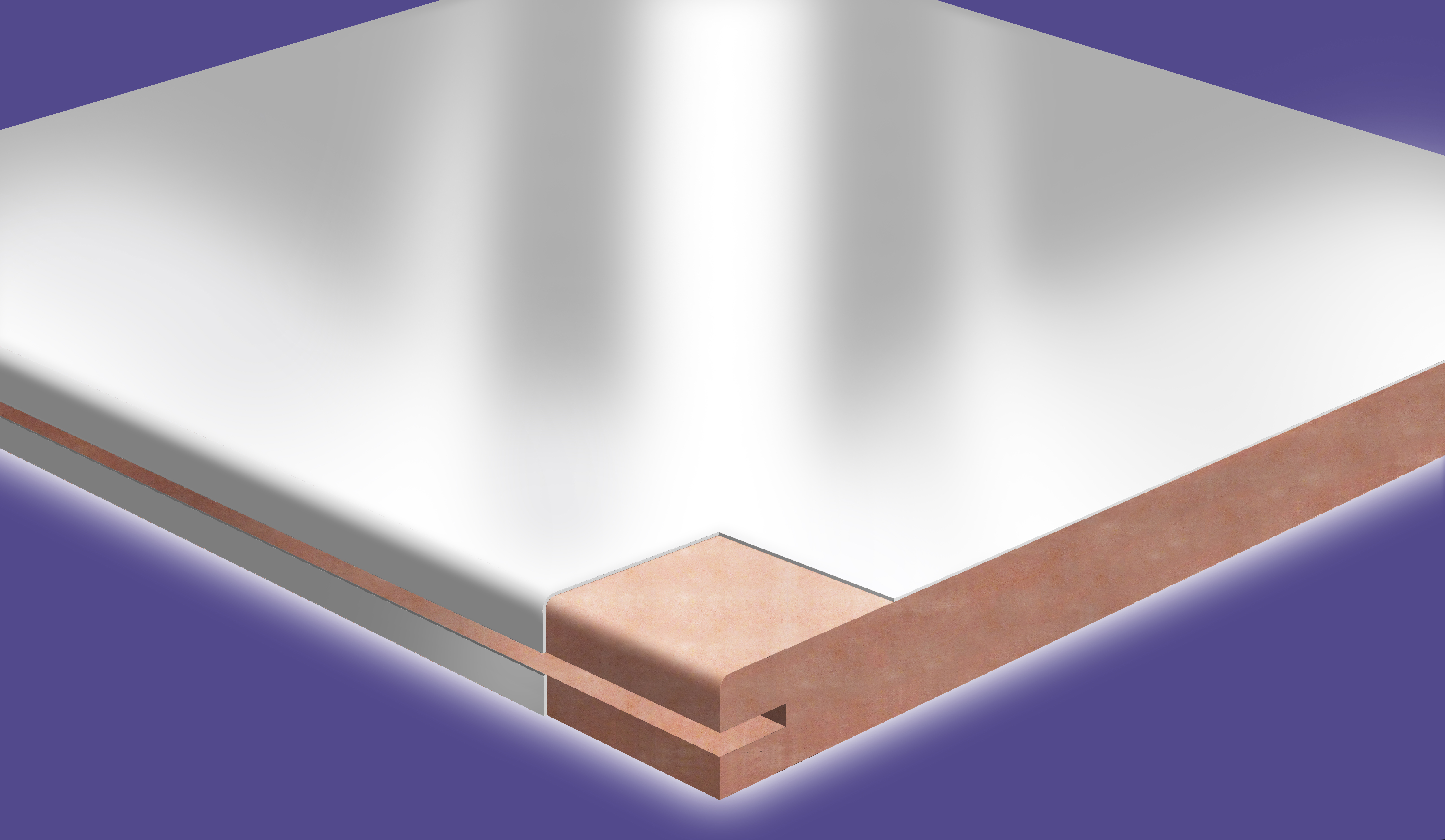

GFRP 19 mm : Ultra high impact panel



Arcoplast. GFRP 19 mm : Ultra panel



THICKNESS 19 mm
WIDTH 1200 mm
LENGTH 900 - 3650 mm   •••   tolerance +/- 3 mm
WEIGHT 39.1 Kg/Sq.m



Joint Profiles
End Cut Square cut Special order : Kerf Groove
Side Edge Eased side edge Kerf Groove
Joint System Flush seam Mechanical spline, A-2020 structural adhesive
Application : Cleanrooms, high impact areas for large animal.

Dry Build : Direct attachment to structural framing or solid substrates, using splines and A-2020 structural adhesive

Rated : BSL-3, BSL-3Ag, ABSL-3, BSL-4

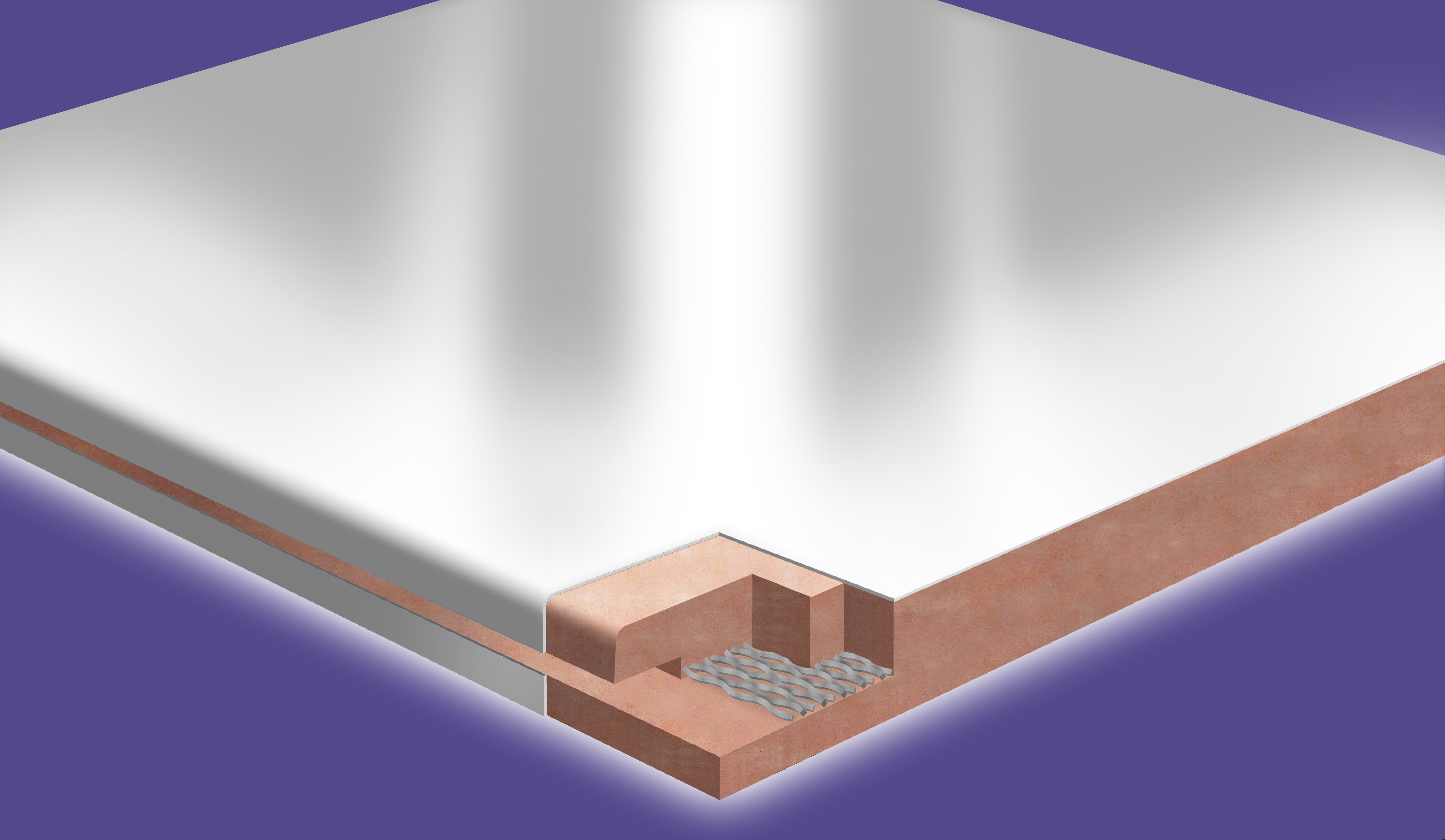

19 mm : Security embed steel mesh panel



Arcoplast. 19 mm : Security panel. Embed steel mesh



THICKNESS 19 mm
WIDTH 1200 mm
LENGTH 900 - 3650 mm   •••   tolerance +/- 3 mm
WEIGHT 38.3 Kg/Sq.m



Joint Profiles
End Cut Square cut Special order : Kerf Groove - - -
Side Edge Eased side edge Kerf Groove - - -
Joint System Batten cover Flush seam Mechanical spline, A-2020 structural adhesive
Applications : Maximin security, cleanrooms and high containment facilities

Dry Build : Direct attachment to structural framing or solid substrates, using splines and A-2020 structural adhesive

Rated : BSL-3, BSL-3Ag, ABSL-3, BSL-4

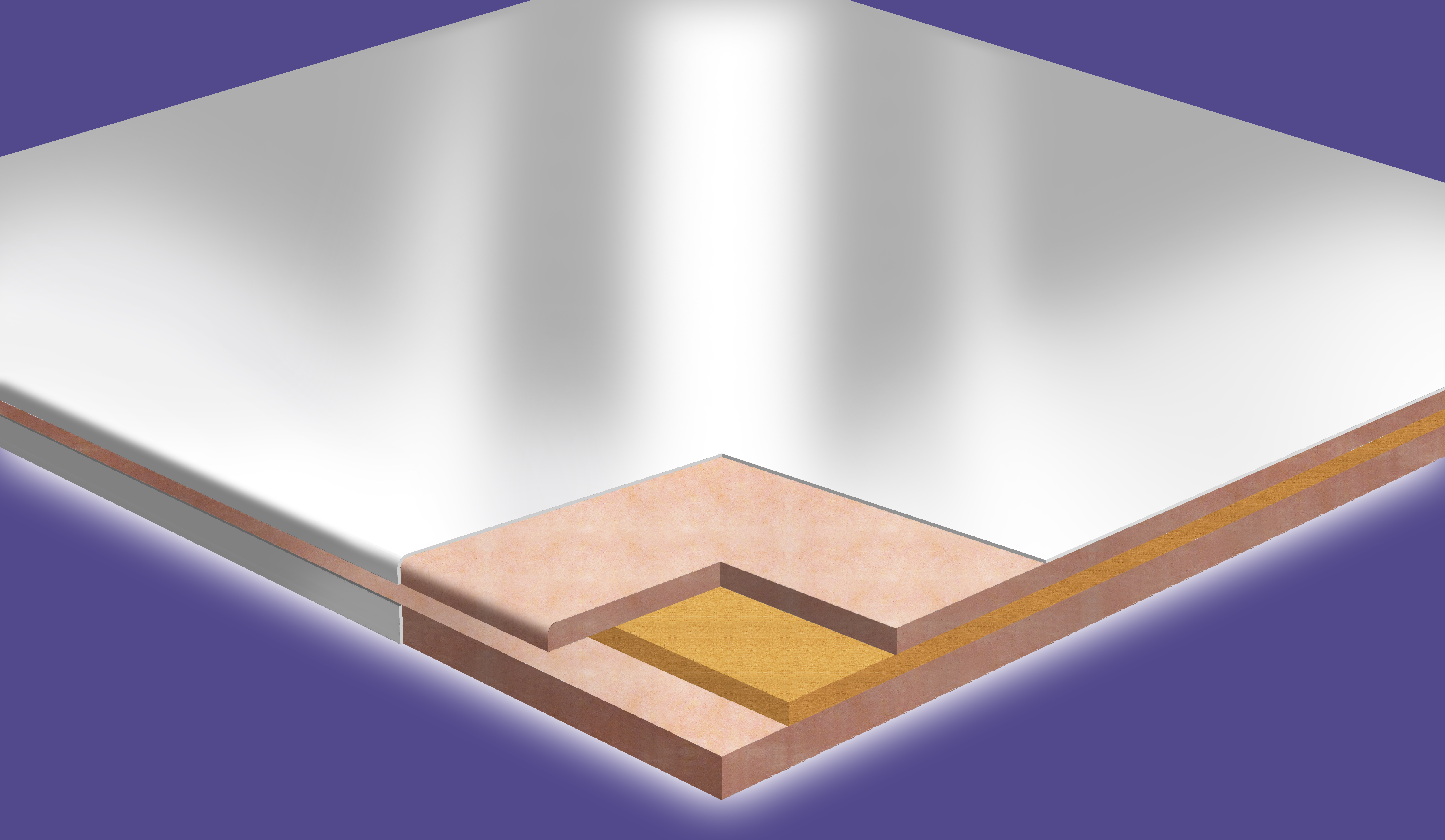

GFRP 12.5 mm : Copper panel



Arcoplast. GFRP 12.5 mm : Copper panel. Embed copper sheet



THICKNESS 12.5 mm
WIDTH 1200 mm
LENGTH 900 - 3650 mm   •••   tolerance +/- 3 mm
WEIGHT 24.8 Kg/Sq.m



Joint Profiles
End Cut Square cut Special order : Kerf Groove - - -
Side Edge Eased side edge Kerf Groove - - -
Joint System Batten cover Flush seam Mechanical spline, A-2020 structural adhesive
Applications : Faraday's cage RF shielding for cleanrooms and high containment facilities

Dry Build : Direct attachment to framing or various substrates using splines and A-2020 structural adhesive

Rated : BSL-3, BSL-3Ag, ABSL-3, BSL-4

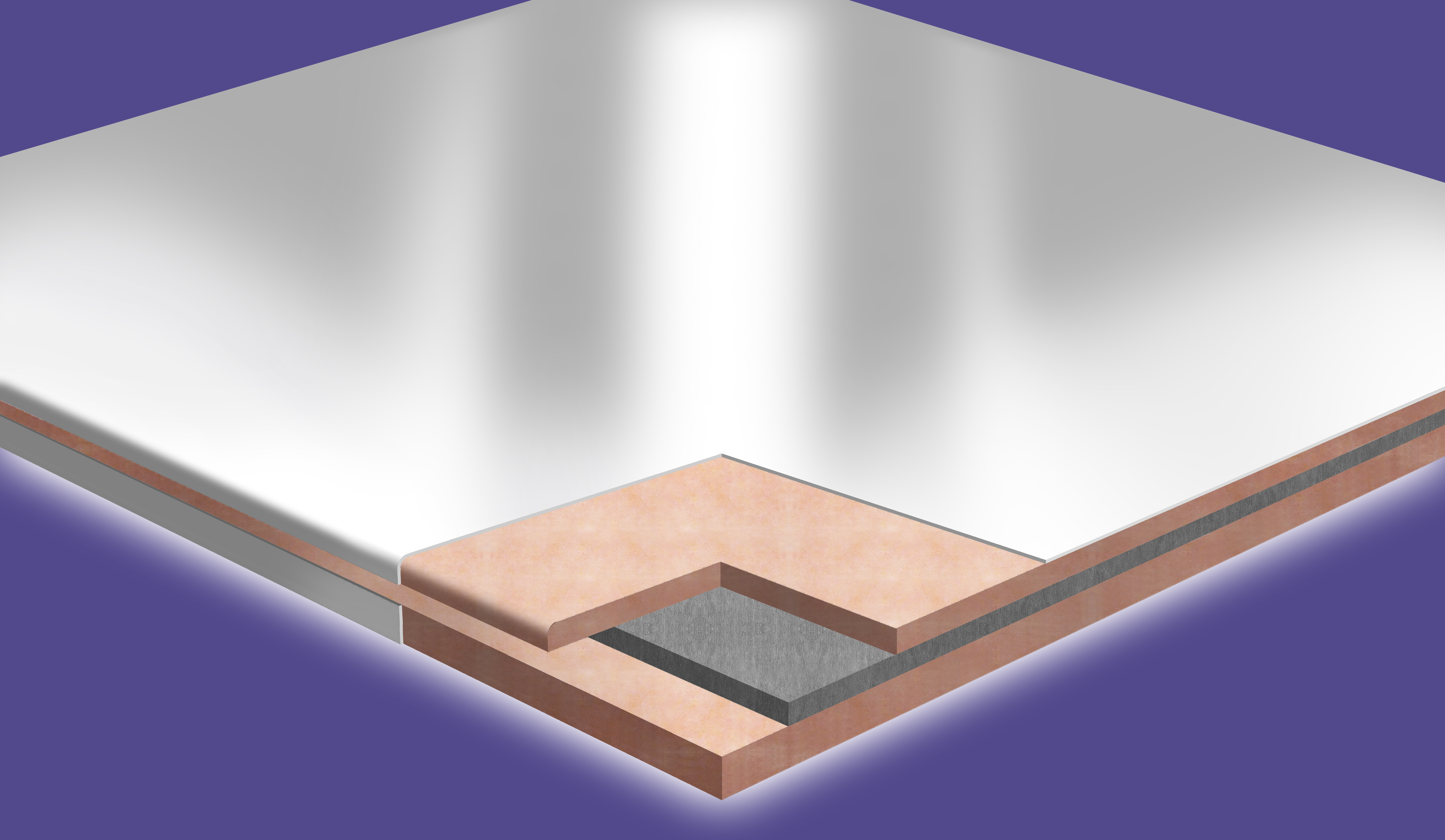

GFRP 12.5mm : Lead panel



GFRP 12.5mm : Lead panel. Embed Lead sheet



THICKNESS 12.5 mm
WIDTH 1200 mm
LENGTH 900 - 3650 mm   •••   tolerance +/- 1/8in
WEIGHT 35.32 Kg/Sq.m



Joint Profiles
End Cut Square Cut Special order : Kerf Groove - - -
Side Edge Eased side edge Kerf Groove - - -
Joint System Batten cover Flush seam Mechanical spline, A-2020 structural adhesive
Application : Radiology suits or Radiopharmaceutical cleanrooms

Dry Build : Direct attachment to framing or various substrates using splines and A-2020 structural adhesive

Rated : BSL-3, BSL-3Ag, ABSL-3, BSL-4








GFRP PANELS : 5MM


WALLS & CEILINGS : Attached to framing
WALLS & CEILINGS : Attached to substrate

Applicable for walls or ceilings

If your browser does not support PDFs. Click : Browse PDF

Browse PDF

Detail applicable for both walls and ceilings

If your browser does not support Puffs. Click : Browse PDF

Browse PDF



GFRP PANELS : 9.5 - 12.5MM


BASE. WALL TO FLOOR : Attached to framing

BASE. WALL TO FLOOR : Attached to substrate



CONNECTING. PANEL TO PANEL : Attached to framing
CONNECTING. PANEL TO PANEL : Attached to substrate

Applicable for both walls and ceilings

Browse PDF

Applicable for both walls and ceilings

Browse PDF

Applicable for both walls and ceilings

Browse PDF



CORNER. WALL TO WALL : Attached to framing
CORNER. WALL TO WALL : Attached to substrate



CORNER. WALL TO CEILING : Attached to framing
CORNER. WALL TO CEILING : Attached to substrate



WALK ON CEILING : Attached to framing

Browse PDF
WALK ON CEILING : Attached to substrate



GFRP : SPECIALIZED EMBEDDED PANELS


GFRP 12.5 - 19mm : COPPER SHIELD PANEL
GFRP 12.5 - 19MM : LEAD SHIELD PANEL





GFRP 19MM SECURITY EMBEDDED STEEL SHIELD



GFRP 19MM ULTRA : HIGH IMPACT PANEL





GFRP : PARTITION SYSTEM




DOORS : GLAZING : PENETRATIONS : WINDOWS


DOOR FRAME
HOUSING WINDOW SYSTEMS



PENETRATIONS
WINDOW GLAZING SYSTEMS
BARRIER
COLOR



FIRE & SMOKE

MECHANICAL TEST



SOUND
STRENGTH

Applicable for both walls and ceilings

Browse PDF



SURFACE



BARRIER TESTS : GFRP 3/8 in | 9.5 mm


Description Test Result
Air pressure decay nuclear air treatment systems ASME N510 Pass
Air pressure decay test on accessories relating to MEP MEP Pass
Air pressure decay test on expansion joint & electrical face plates Test Pass
Air pressure decay test on screw penetrations Test Pass
Air pressure decay test small chamber BSL-3, BSL-4 Pass
Supplemental helium leak Test Pass
Window panel pressure decay test report Report Pass



FIRE & SMOKE TESTS : GFRP 3/8 in | 9.5 mm


Description Test Result
Classification of reaction to fire performance, in accordance with – Europe, Asia EN 13501-1 – Europe, Asia B-s1-d0
Full scale room fire ISO 9705 Annex B Pass
Measurement of acute lethality decomposition products UPITT Protocol Toxicity MEA 414-04-M
On surface burning characteristics (Must be on full composite construction – Canada) UL S-102 18,9 FS-63, 4SD
On surface burning characteristics (Must be on full composite construction – USA) ASTM E-84 20FS – 145SD
Vertical burning UL 94 – 5VA 500W Pass



MECHANICAL TESTS : GFRP 3/8 in | 9.5 mm


Description Test Result
Joint peel strength Interior corner assembly 55 lbf
Partition load bearing Partition load bearing Pass
Pull-out strength of variable fasteners test Ex. #6 x 25mm Pan Phillips SDS 573 lbs
Seismic loading compliance - FEA report on structural analysis report FEA report Pass
Seismic shear strength test lateral movement Corner section assembly 330 lbf
Seismic shear strength test load Solid panel - peak load 556 lbf
Seismic shear strength test panel Spline joint assembly 396 lbf
Walk-on ceiling system load System load Pass



PHYSICAL TESTS : GFRP 3/8 in | 9.5 mm


Description Test Result
Barcol indentation hardness ASTM D 2583 56.8
Coefficient of linear thermal expansion ASTM D 696-03 27.5 x 10-6 in/in°F
Compressive strength properties ASTM D 695-02a 15920 psi
Degree of surface disfigurement by fungal/algal growth ASTM D3274 Pass
DTUL – Deflection temperature under load ASTM D 648 185°F
Flexural properties for Reinforced plastics ASTM D 790-03 10318 psi
Impact resistance Mil 1073.2 18’ x 2 lbs
Resistance to mold on the surface ASTM D3273 Pass
Resistance to bacteria ISO 846A-B-C 10318 psi
Sound absorption ASTM C 423-09a / E 795-05 0.05
Sound transmission loss ASTM E 90-09 / E 413-10 57
Specular gloss ASTM D 523 99.7
Surface profile & surface finish analysis ISO 10012-1 Pc750
Tensile properties ASTM D 638-03 10141 psi
Thermal conductivity ASTM D177 R-Value : 0.1
Water absorption ASTM D 570 0.01
Water vapor transmission ASTM E 96-05 0.01



SURFACE TOPOGRAPHY


Surface Topography
GFRP
Ra* : Roughness Average
0.082 μm
Rq : Roughness, root mean square average
0.135 μm
Rz : Average Maximum Height of the Profile
0.817 μm
Rp : Maximum Profile Peak Height
0.604 μm
Rv : Maximum Profile Valley Depth
0.213 μm
Rt : Maximum Height of the Profile
2.384 μm
