Arcoplast A-1010 Bio-Seal : In a single application. MEP pipes, wall, ceiling and Arcoform box cove joints are sealed and finished.
The new science of adhesives and sealants: A-1010 Bio-Seal three-in-one adhesive sealant finishing compound, and A-2020 Methacrylate structural adhesive are integral to the Arcoplast dry build method of construction, along with : VHB tape, backplates, splines, fasteners ... and one of three Arcoplast panel systems. With these few resources, a well-trained crew is able to build a seamless Arcoplast primary barrier to the highest national/international standards, anywhere in the world.
A-1010 Bio-Seal and A-2020 have been vigorously lab and field tested meeting and exceeding the criteria and standards for industries : Pharmaceutical production, food and beverage manufacture, IT, healthcare, vivariums, biosafety laboratories rated : CL-3, CL-4, ABSL-3, BSL-3, BSL-3Ag, BSL-4, PC3, PC4.
A-1010 ADHESIVE SEALANT FINISHING COMPOUND
A-1010 Bio-Seal : Direct attachment of devices involving no fasteners or penetration is part of the Arcoplast Design, Build workflow.

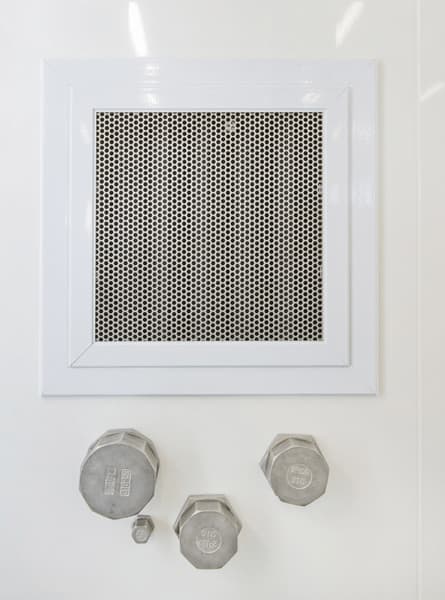

A-1010 Bio-Seal : Seamless air, water tight penetrations, Sealed and Finished in a single application.

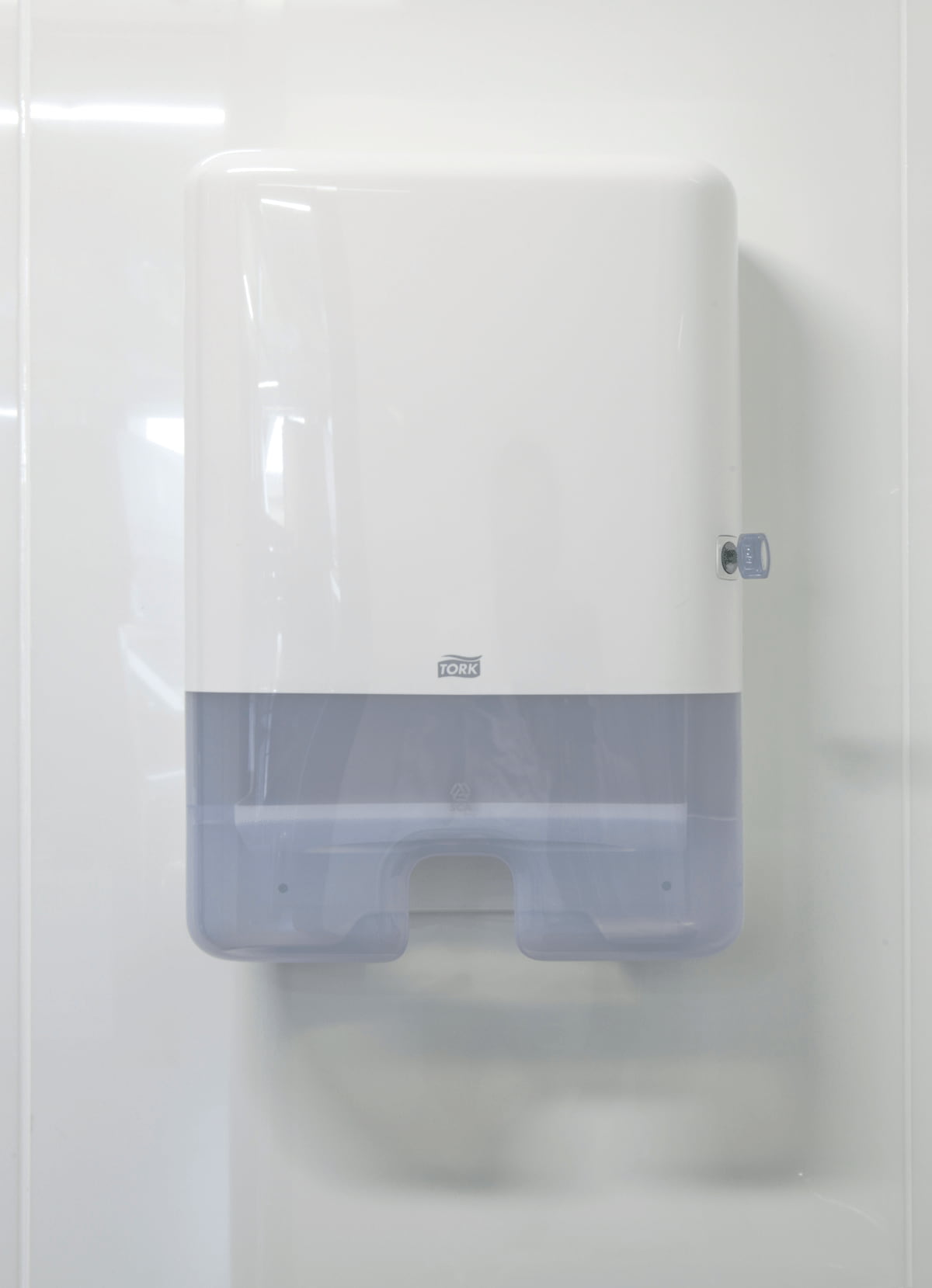

Clean simple integration of fixtures, using A-1010 Bio-Seal and A-2020 Adhesive.
Clean simple integration of fixtures, using A-1010 Bio-Seal and A-2020 Adhesive.

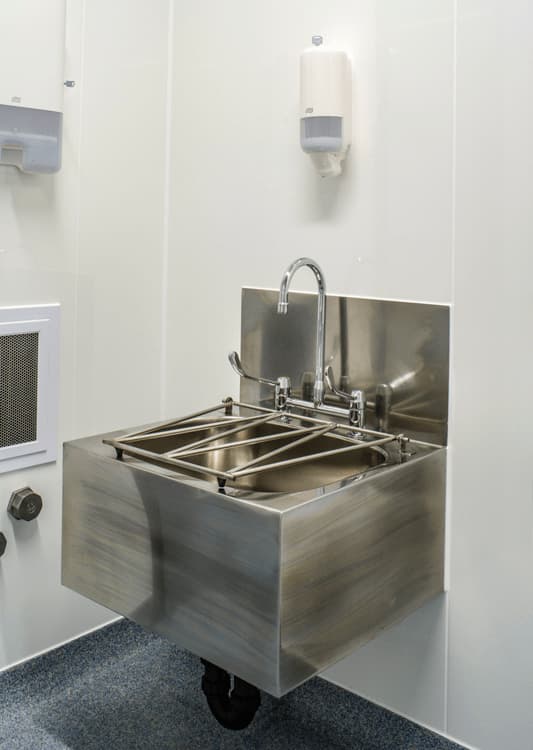

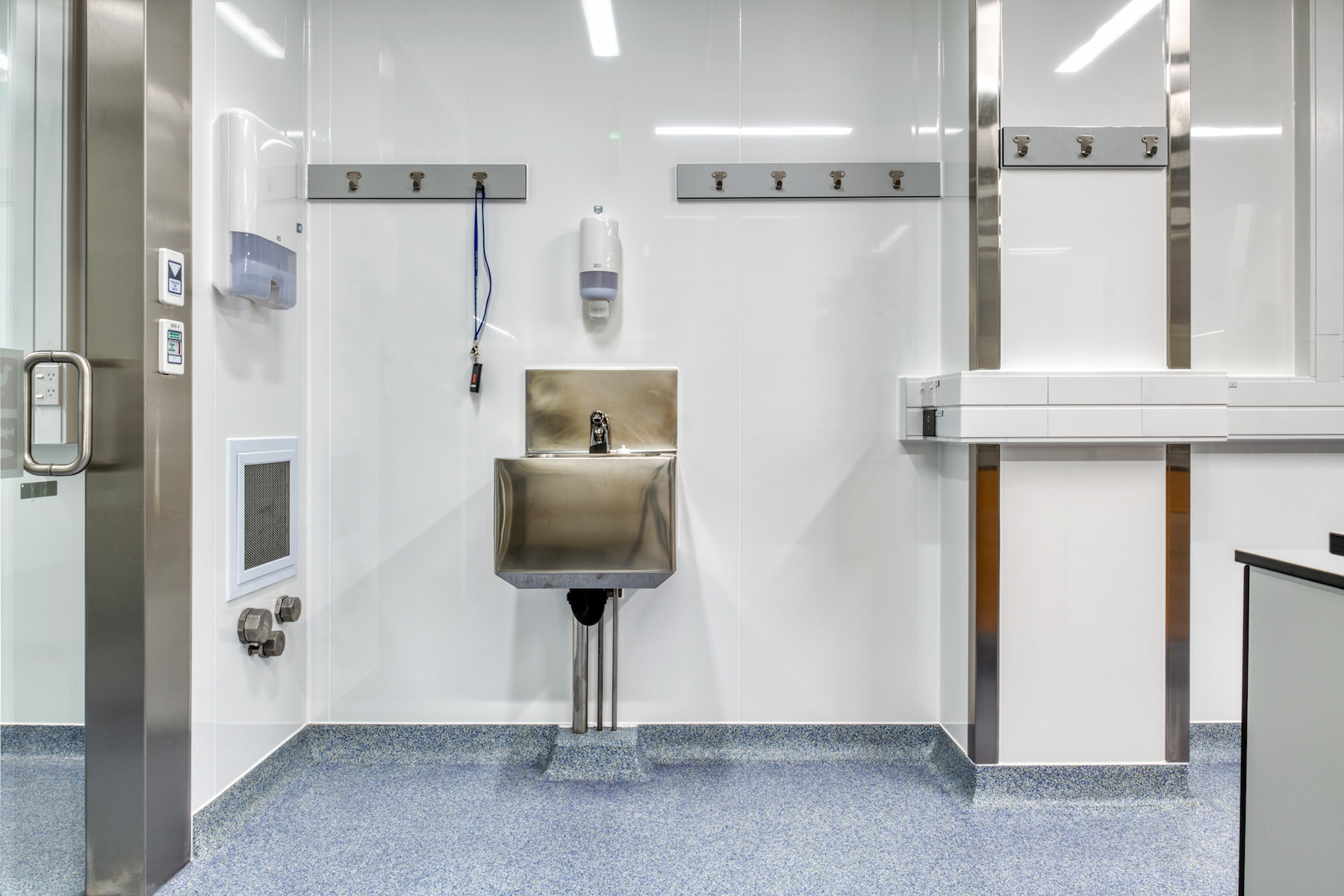

A-1010 Bio-Seal, A-2020 Adhesive : The wash basin is directly attached to the wall. The seal and finish is water proof and has a long life cycle with no rejuvenating maintenance programs.
A-1010 BIO-SEAL
Product description : A-1010 Bio-Seal is supplied as a twin cartridge equal mix, high strength aliphaticurethane structural adhesive that bonds, seals and finishes in a single application, it is touch dry in 12 hours and fully cured in 72 hours. A-1010 Bio-Seal is specifically designed for composite panel joints and panel to panel coving with featheredge detailing, resulting in a seamless finish. Features of A-1010 Bio-Seal : Chemically neutral, retains a permanent high gloss non-porous, non-yellowing finish, is odor free and environmentally neutral.
A-1010 Bio-Seal perm rate : 0.002 grams per Sq Meter per hour. In contrast silicon has a perm rate of 1.000 grams per Sq Meter per hour. A-1010 Bio-Seal produces an impermeable, air, gas, water tight seal, it is unaffected by moisture, mildew, condensation, does not support the growth of fungus, microbial activity and is impervious to vermin.
Skilled application is essential, Arcoplast have on file a list of experienced contractors and applicators, or if required we offer comprehensive training, these resources are available to our clients any where in the world.
STAINLESS STEEL. Integration

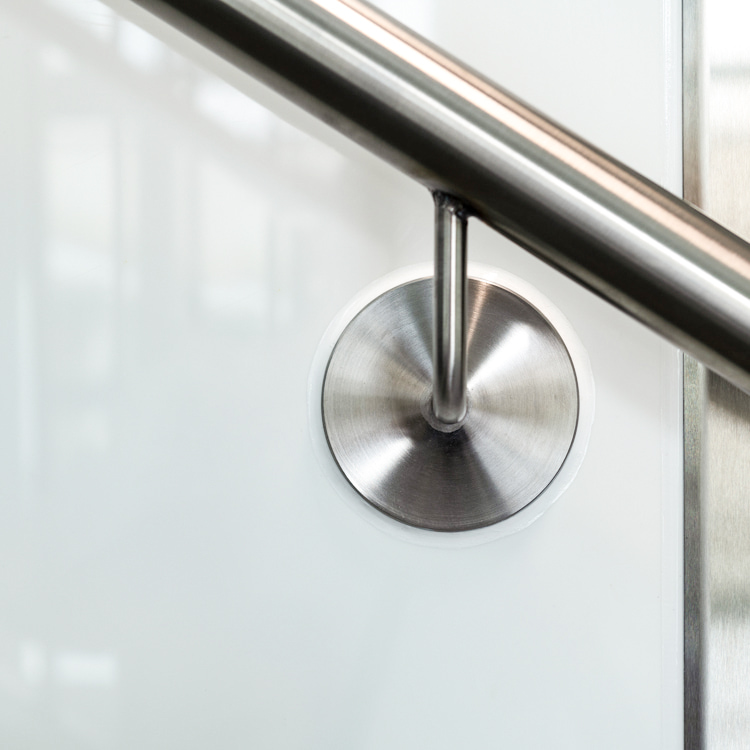

A-1010 Bio-Seal : Stainless Steel handrail seamlessly integrated into the primary barrier.

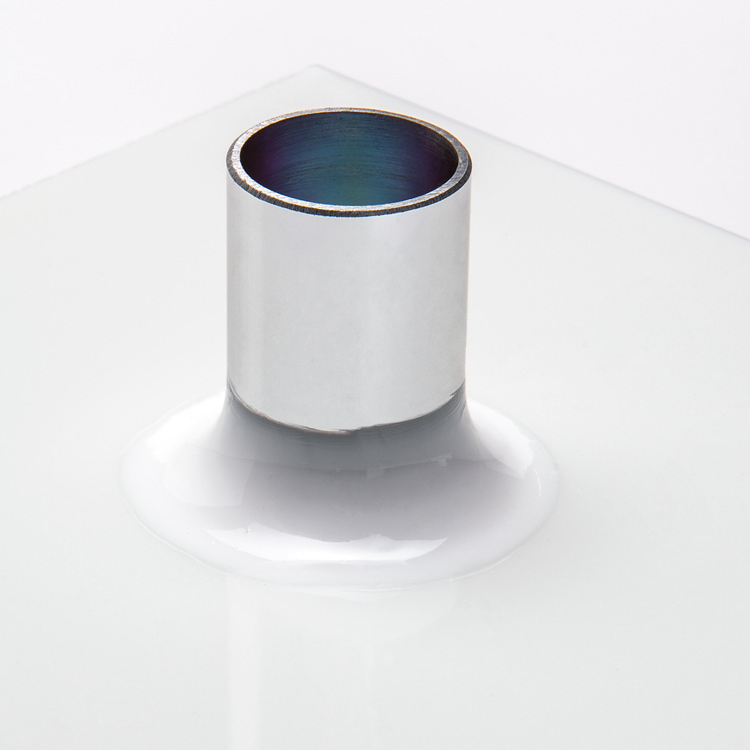

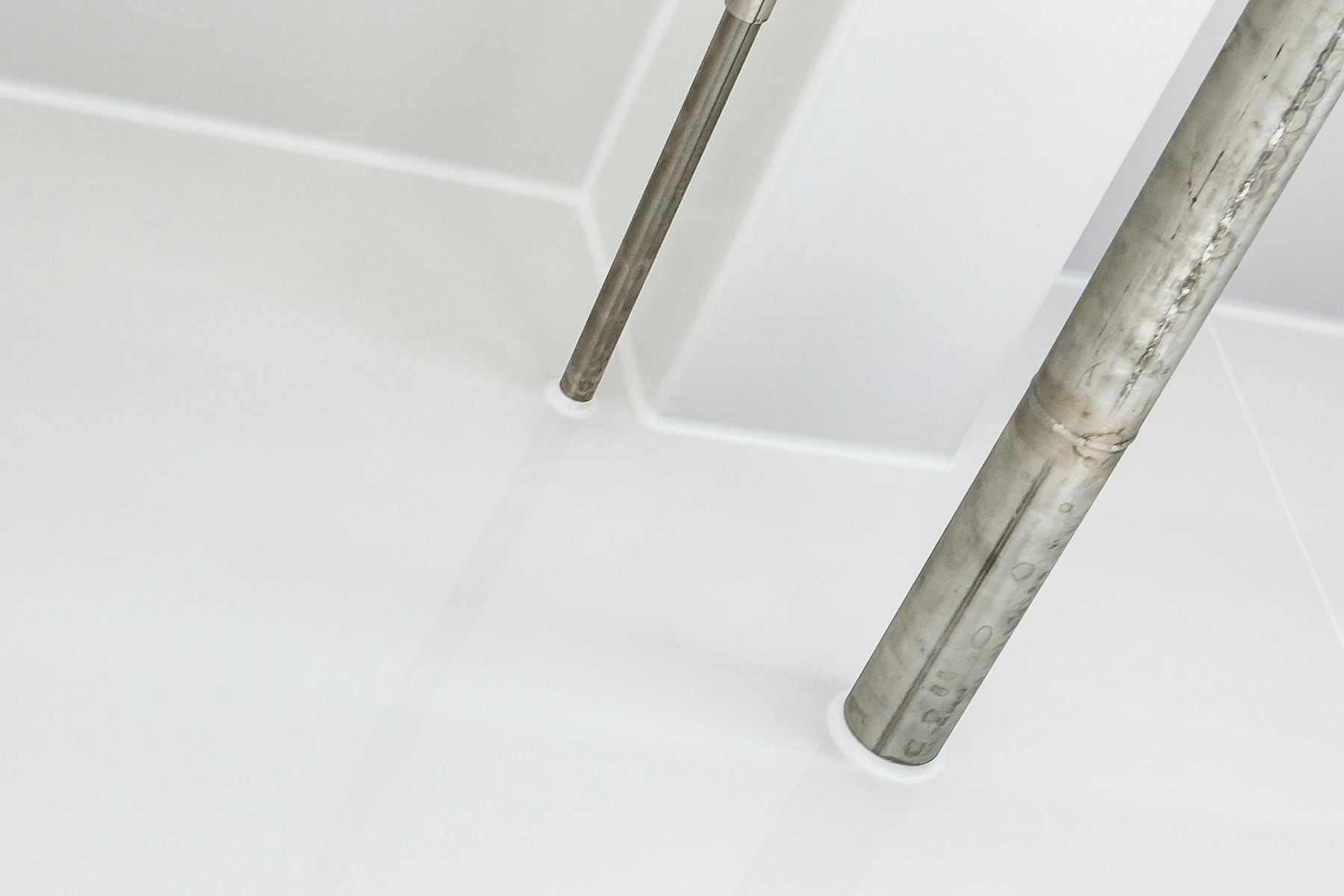

ALUMINUM PIPE : Penetration
A-1010 Bio-Seal : Sealed and finished, seamless impermeable pipe penetration. No grommet.

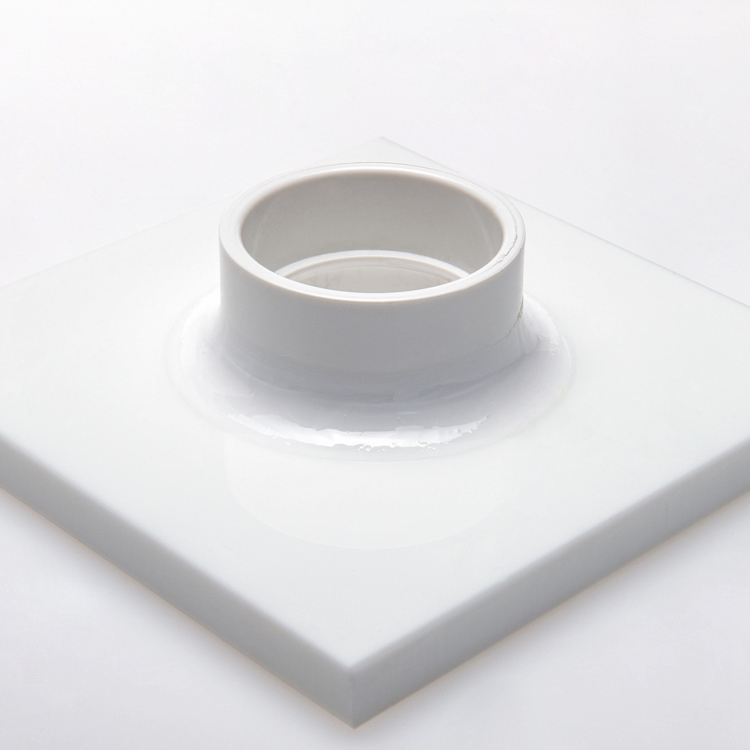

PLASTIC PIPE : Penetration
Penetration with pipe sleeve, sealed and finished using A-1010 Bio-Seal. No grommet.

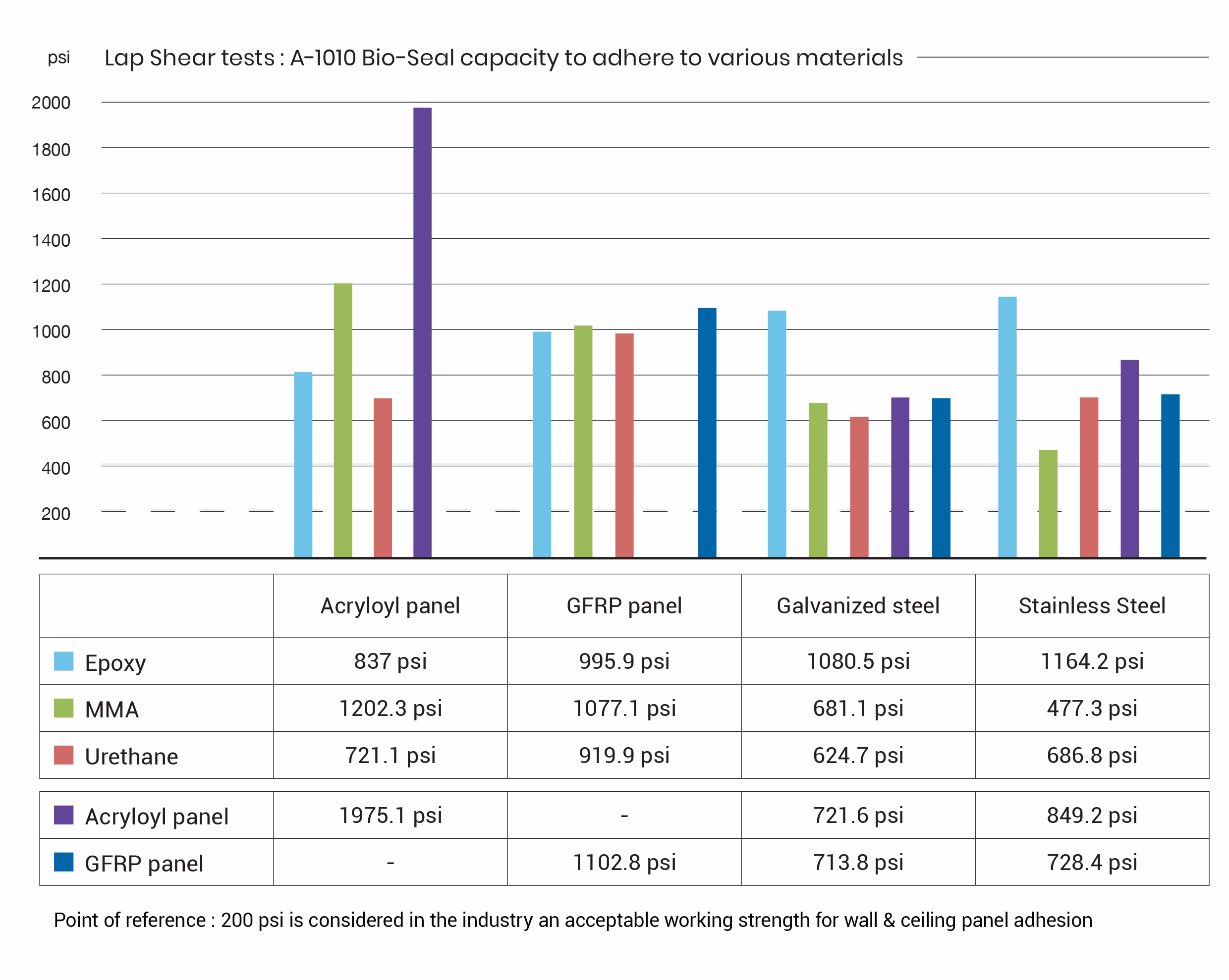

TEST RESULTS : A-1010 BIO-SEAL

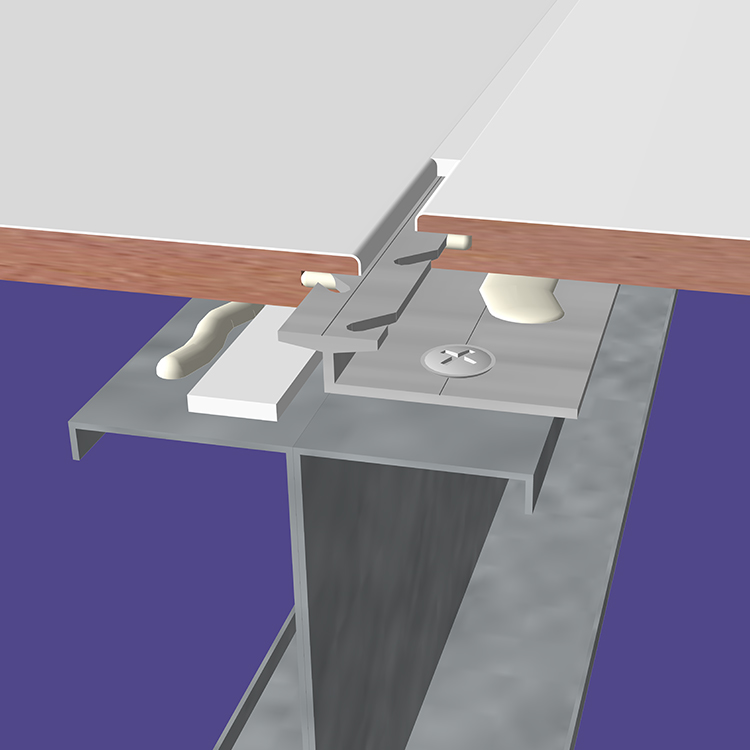

A-2020 STRUCTURAL ADHESIVE
INSTRUCTIONS brief overview :
Twin tube adhesive with a working time of 30-50 minutes at 75º | 24ºC and a fixture time of 100-150 minutes at 75º | 24ºC, fully cured 4 hours. A-2020 structural adhesive and A-1010 Bio-Seal are designed to work in a staggered combination. Meaning A-2020 structural adhesive is used to bond different materials together. Four hours later once cured, A-1010 Bio-Seal is used to seamlessly seal and finish the : Joint /seam or penetration etc.
A-2020 adhesion strength facilitates direct attach of many devices and MEPs to the Arcoplast primary barrier without the need of fasteners, in effect A-2020 chemically welds the fixture to the Arcoplast primary barrier panel.
A-2020 structural adhesive is impermeable, does not encourage the growth of bacteria, fungus or microbial activity and is impervious to vermin. A-2020 is certified for facilities rated : CL-3, CL-4, PC3, PC4, BSL-3 and BSL-4.

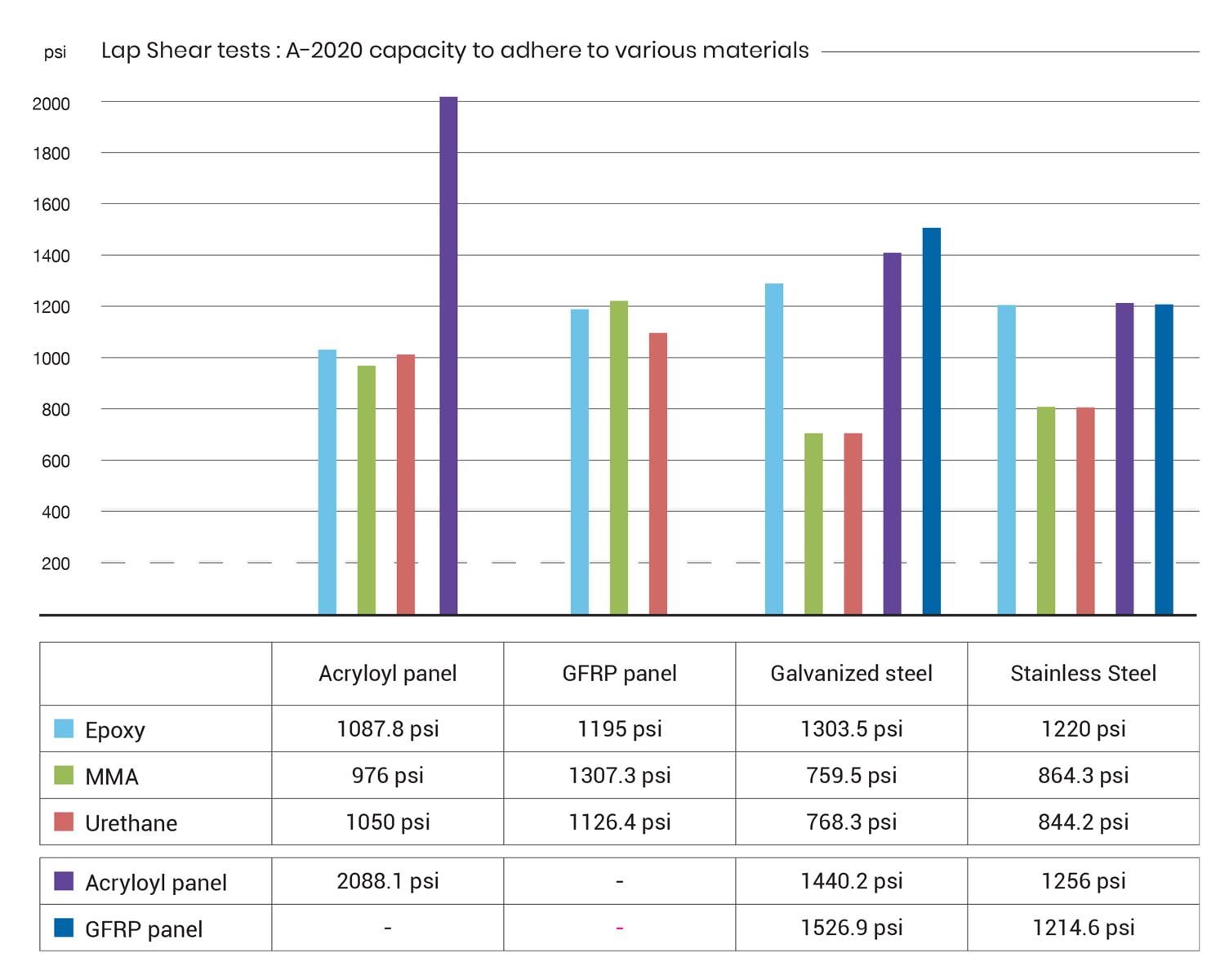

A-2020 STRUCTURAL ADHESIVE : LAP SHEAR TEST RESULTS
